The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.

Key Features

• Fits an Intel or M1 Mac mini
• Dual-Module 2U Rackmount Enclosure
• Rugged Steel Construction
• xMac mini Module
• Echo III Module

Package Contents

• Dual-Module Rackmount Enclosure
• xMac mini Module
• Echo III Module
• Power cord x2
• 0.5-meter Thunderbolt 3 (40Gbps) cable
• 0.7-meter Thunderbolt 3 (40Gbps) cable
• ThunderLok 3 Thunderbolt Connector Retainer Clip
• Extension rails for rack depth 16-24 inches
• Documentation

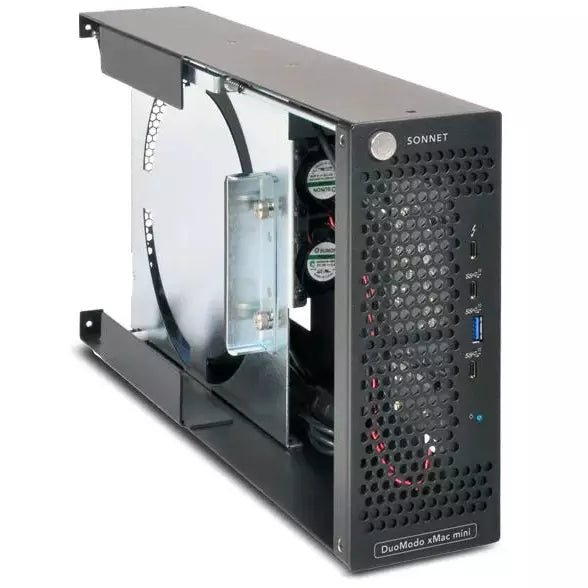

xMac mini Module

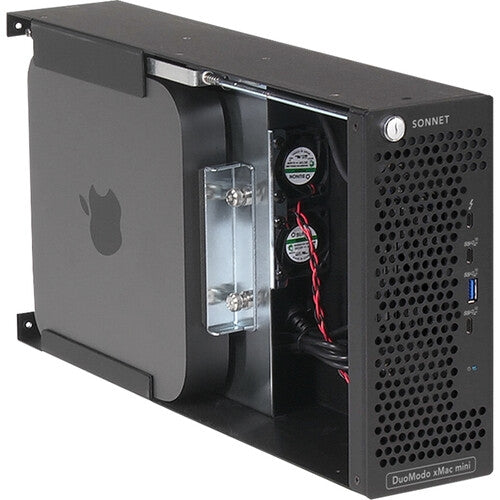

• Securely Holds an Intel or M1 Mac mini (sold separately) in a Rugged Steel Frame
• Open Access to the Computer’s Ports in Back
• Built-in Thunderbolt™ 3 Dock
• Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
• Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
• One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
• Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
• Temperature-controlled, Variable-Speed Fan Offers Quiet Operation
• Power Cable Included
• Thunderbolt 3 (40Gbps) Cable Included

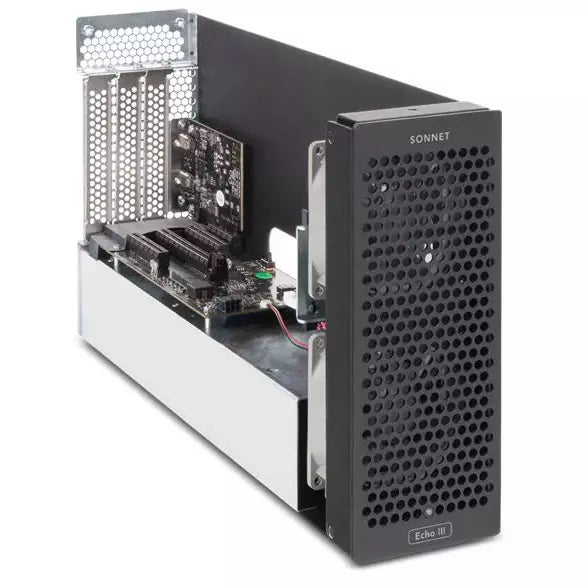

Echo III Module

• Three Versatile PCIe Slots
• One x16 plus Two x8 PCIe Slots

• Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards (  of supported PCIe Cards)
• AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
• Built-in 400W Power Supply with 75W Auxiliary Power Connector
• Powers On and Off Automatically with Connected Computer
• Dual Temperature-controlled, Variable-speed Noctua fans rated at 17 dbA
• Two Thunderbolt 3 Ports
• 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
• Power Cable Included
• Thunderbolt 3 (40Gbps) Cable Included
•  Thunderbolt Connector Retainer Clip Included

Why Sonnet?

• 2-year Product Warranty
• Free Lifetime Customer Technical Support
• Designed and Made in the USA
